ALPINE MULTIMEDIA SYSTEM

" Photo " menu

From the main menu, press "Applications" then the "Photo" tab.

Select a connected input source.

If several sources are connected, select one of the input sources from the following list to access the photos:

• "USB1" (USB port);
• "USB2" (USB port).

Note:

• some formats may not be recognised by the system;
• the USB drive must be FAT32 or NTFS formatted and have a minimum capacity of 8 GB and a maximum capacity of 64 GB.

"Playback"

You can choose to see all the photos in a slideshow or view a single photo.

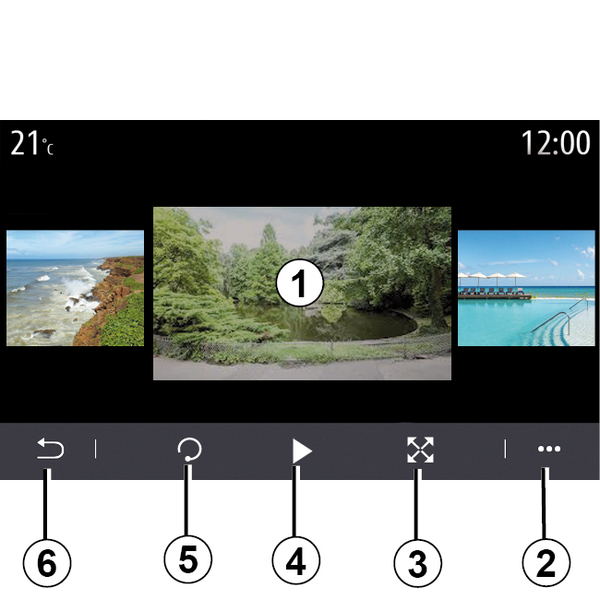

When viewing a photo, you can:

• access the previous or the next photo by quickly swiping the image preview area 1;

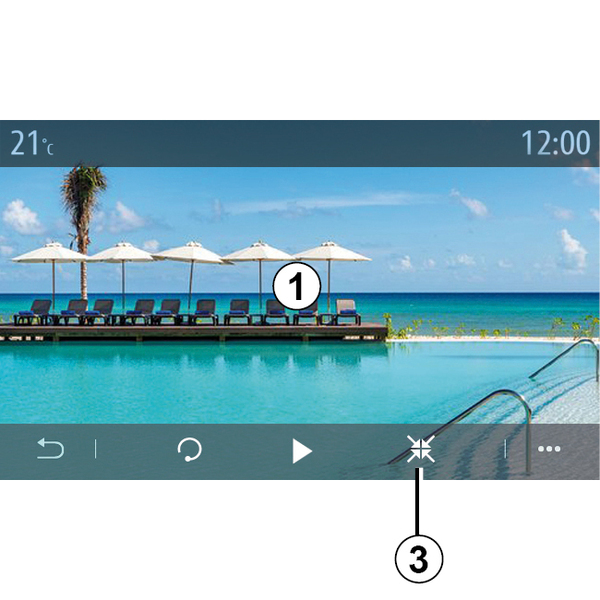

• switch from normal mode (adjusted) to full screen mode by pressing the button 3 or by clicking twice on the image preview area 1;

• rotate a photo by pressing the button 5;
• play a slideshow by pressing the button 4;
• return to the previous screen by pressing 6.

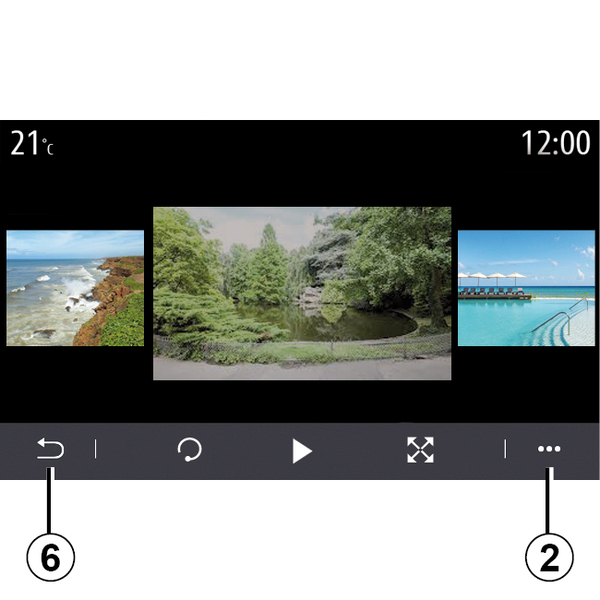

"Pop-up menu"

From the photo display screen, press the button 2 to:

• get detailed information of photos (title, file type, date, filepath, etc.);
• set the user profile photo and wallpaper;
• Accessing settings

« Information »

From this menu, you can access photo information (title, type, access path, size, resolution).

Note: for more information on compatible photo formats, please consult an approved dealer.

"Select profile"

From this menu, you can change the profile image. Confirm by pressing "OK" to save your changes.

« Settings »

From this menu, you can access the slideshow settings:

• change the display time for each photo in the slideshow;
• active/deactivate animation effect between each photo in the slideshow.

Note: the slideshow animation effect is activated by default.
