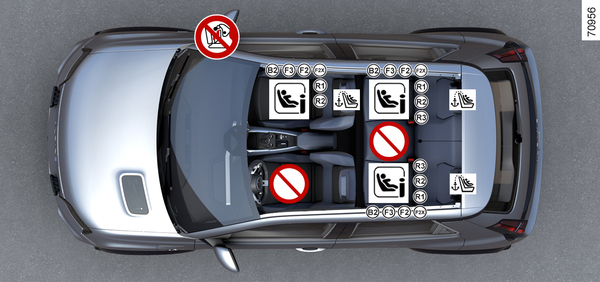

Fitting diagram

tip

For the front passenger seat, the use of a child seat with a floor support is recommended to avoid triggering the seat belt warning signal.

warning

Using a child safety system which is not approved for this vehicle will not properly protect the baby or child. They risk serious or even fatal injury.

warning

Fitting a seat ISOFIX in the rear-left seat means the middle seat cannot be used. The central seat belt will no longer be either accessible or useable.

warning

RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat on the front passenger seat, check that the airbag has been deactivated Child safety: deactivating, activating the front passenger airbag.

Seat which does not allow a child seat to be fitted.

Child seat attached using the mounting ISOFIX

Seat equipped for attaching a ISOFIX or i-Size child seat.

The front and rear seats are equipped with an anchorage point that enables a Universal forward-facing child seat ISOFIX to be fitted. The anchoring points are located on the passenger seatback for the front seat and on the bench seatback for the rear seats.

warning

Check that your child is always strapped in and that the belt or safety harness used is correctly set and adjusted.

If necessary, adjust the seat position accordingly.

warning

It is prohibited to fit a child seat in the adjacent available seat when the large seatback is folded down onto the other seats Rear seats.

warning

Fit the child seat in a rear seat wherever possible.

To install an ISOFIX seat in this seat, unbuckle the seat belt by hand before engaging the bolts.

Installation table

The table below summarises the information shown on the diagram in order to ensure compliance with current regulations.

Type of child seat

Weight of the child

Size of seat [fixture]

Front passenger seat

Rear side seats

Rear centre seat

With airbag deactivated

With airbag activated

Carrycot fitted across the vehicle

Group 0

< 10 kg

L1 [F]

L2 [G]

X

X

X

X

Rear-facing shell seat

Groups 0 or 0 +

< 13 kg

R1 [E]

IL (1) (2)

X

IL (3)

X

Rear-facing seat

Groups 0+ and 1

< to 13 kg and 9 to 18 kg

R3 [C]

X

X

IL (3)

X

R2 [D]

IL (1) (2)

Forward-facing seat

Group 1

9 to 18 kg

F3 [A]

F2 [B]

F2X [B1]

X

IUF-IL

(2)

IUF-IL

(4)

X

Booster seat

Groups 2 and 3

15 to 25 kg and 22 to 36 kg

B2

X

IUF-IL(5)

IUF-IL

(4)

X

Seat i-Size

Rear-facing seat

i - U (1) (2)

X

i - U (3)

X

Forward-facing seat

X

i - UF (2)

i - U (4)

X

Booster seat

X

i - UF (5)

i - U (4)

X

X = Seat not suitable for fitting child seats.

IL = Seat allowing a child seat with "Semi-universal or vehicle-specific" approval to be attached using the ISOFIX system on equipped vehicles: check that it can be fitted.

i-U = Suitable for "Universal" front-facing and rear-facing i-Size restraint devices.

i-UF = Suitable only for "Universal" front-facing restraint devices i-Size.

warning

(1) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat on the front passenger seat, check that the airbag has been deactivated Child safety: deactivating, activating the front passenger airbag.

(2) Adjust the vehicle seat as far back and as low as possible. Tilt the seatback as far as possible, install the child seat and re-adjust the seatback to an angle of about 25°.

(3) If necessary, position the vehicle seat as far back as possible. Before installing a rear-facing child seat, move the front seat forwards as far as possible then, once the child seat is installed, move the front seat backwards as far as possible without it touching the child seat.

(4) In all situations, remove the headrest of the rear seat on which the child seat is positioned. This must be done before fitting the child seat. Move the seat in front of the child forwards, move the seatback forward to avoid contact between the seat and the child's legs.

(5)Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°).

The size of the ISOFIX child seat is indicated by a letter:

  • F3, F2, F2X[A, B, B1]: for forward-facing child seats in group 1 (9 to 18 kg);
  • B2: Booster seat in group 2 (15 to 25 kg);
  • R3, R2[C, D]: rear-facing seats or shell seats in group 0+ (less than 13 kg) or group 1 (9 to 18 kg);
  • R1[E]: rear-facing shell seats in group 0 (less than 10 kg) or 0+ (less than 13 kg);
  • L1,L2[F,G]: carrycots in group 0 (less than 10 kg).
