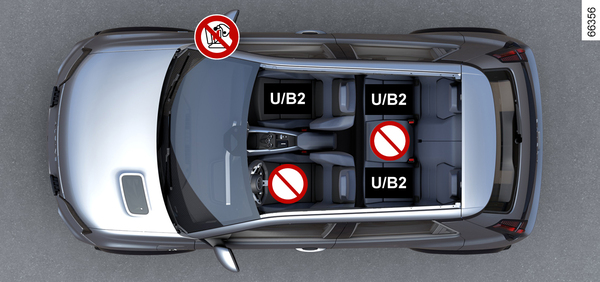

Fitting diagram

warning

RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat on the front passenger seat, check that the airbag has been deactivated Child safety: deactivating, activating the front passenger airbag.

Check the status of the airbag before fitting a child seat or allowing a passenger to use the seat.

Seat not suitable for fitting child seats.

Child seat attached using the belt

Seat equipped for attaching a "universal" approved seat using a seatbelt.

Seat enabling a child seat with "B2" approval to be attached by seat belt.

warning

Using a child safety system which is not approved for this vehicle will not properly protect the baby or child. They risk serious or even fatal injury.

warning

Check that your child is always strapped in and that the belt or safety harness used is correctly set and adjusted.

If necessary, adjust the seat position accordingly.

warning

It is prohibited to fit a child seat in the adjacent available seat when the large seatback is folded down onto the other seats Rear seats.

Installation table

The table below summarises the information shown on the diagram in order to ensure compliance with current regulations.

Type of child seat

Weight of the child

Front passenger seat

Rear side seats

Rear centre seat

With airbag deactivated

With airbag activated

Carrycot fitted across the vehicle

Group 0

< 10 kg

X

X

U (2)

X

Rear-facing shell seat

Groups 0 or 0 +

< 10 kg and < 13 kg

U (1) (5)

X

U (3)

X

Shell seat/rear-facing seat

Groups 0+ and 1

< to 13 kg and 9 to 18 kg

U (1) (5)

X

U (3)

X

Forward-facing seat

Group 1

9 to 18 kg

X

U (5)

U (4)

X

Booster seat

Groups 2 and 3

15 to 25 kg and 22 to 36 kg

X

U / B2 (5)

U / B2 (4)

X

warning

(1) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat on the front passenger seat, check that the airbag has been deactivated Child safety: deactivating, activating the front passenger airbag.

X = Seat not suitable for fitting child seats of this type.

U = Seat enabling a child seat with "Universal" approval to be attached by seat belt: check that it can be fitted.

B2 = booster seat in Group 2 (15 kg to 25 kg).

(2) A carrycot can be fitted across the vehicle and it will take up at least two seats. Position the child with his or her feet nearest the door.

(3) If necessary, position the vehicle seat as far back as possible. Before installing a rear-facing child seat, move the front seat forwards as far as possible then, once the child seat is installed, move the front seat backwards as far as possible without it touching the child seat.

(4) In all situations, remove the headrest of the rear seat on which the child seat is positioned. This must be done before fitting the child seat. Move the seat in front of the child forwards, move the seatback forward to avoid contact between the seat and the child's legs.

(5)Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°).
