Introduction
Ultrasonic sensors, indicated by arrows 1, are fitted in the bumpers to detect obstacles near the vehicle.
The function alerts the driver via audible signals and a display representing the area where the obstacle was detected.
Depending on the equipment, the system detects obstacles behind, in front and to the sides of the vehicle.
The Park Assist system is only activated when the vehicle is driven at a speed below approximately 6 mph (10 km/h).
The function does not take into account towing or carrying systems that are not recognised by the system.
warning
This function is an additional driving aid.
Under no circumstances should it replace the driver's care or responsibility whilst reversing.
The driver should always be ready for sudden incidents while driving: always ensure that there are no small, narrow moving obstacles (such as a child, animal, pushchair, bicycle, stone, post, etc.) in the blind spot when manoeuvring.
warning
An impact to the underside of the vehicle while manoeuvring (e.g. striking a post, raised kerb or other street furniture) may result in damage to the vehicle (e.g. deformation of an axle).
To avoid any risk of accident, have your vehicle checked by an approved Dealer.
Location of the ultrasonic sensors
Ensure that the ultrasonic sensors indicated by the arrows 1 are not obscured (by dirt, mud, snow, a badly fitted/attached number plate), impacted, modified (including paintwork) or obstructed by any accessory fitted to the rear and/or, depending on the vehicle, to the front or sides of your vehicle.
Operation
The display A shows the vehicle surroundings and emits beeps.
Obstacle detection
Most objects located near the rear and, depending on the equipment, the front are detected.
The frequency of the beep will increase as it approaches and will become a continuous beep at around 30 cm for obstacles detected to the front or rear.

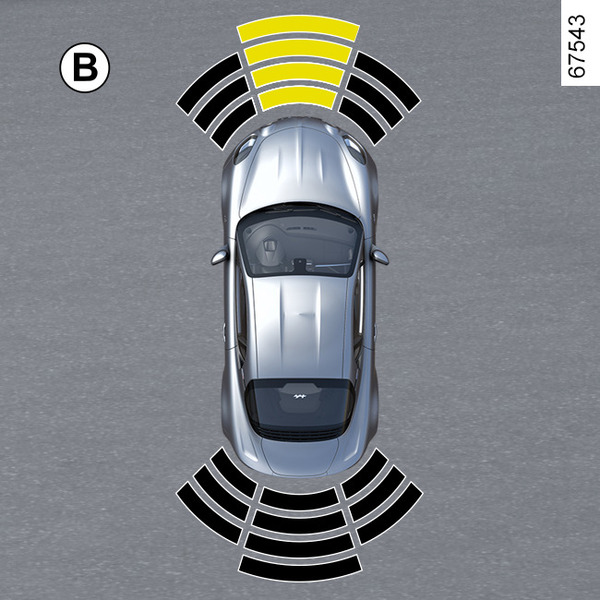

The area where the obstacle has been detected is displayed (display B). Depending on the vehicle, the area is displayed in green, orange or red, depending on the proximity of the detected obstacle.
tip
In the event of a change in trajectory during a manoeuvre, the risk of collision with an obstacle may be signalled late.
Activation/deactivation
You can activate/deactivate Park Assist from the settings menu Vehicle settings personalisation menu.
Parking distance control automatic deactivation
The system is deactivated:
- when the vehicle speed is above approximately 6 mph (10 km/h);
- depending on the vehicle, when the vehicle is stationary for more than approximately five seconds and an obstacle is detected (such as when in a traffic jam, etc.);
- when in N position;
- when an operating fault is detected.
Operating faults
When the system detects an operating fault:
- either a beep sounds for approximately three seconds when the reverse gear is engaged, accompanied by the "Check Parking assist" message and the warning light
on the instrument panel; - or the system does not produce any sound (unless deliberately deactivated) or there is no display when the reverse gear is engaged.
Check that the ultrasonic sensors are clean. If it the fault persists, consult an approved dealer.
tip
When the vehicle is travelling at a speed below approximately 6 mph (10 km/h), some noises (motorcycle, lorry, pneumatic drill, etc.) may trigger the Park Assist system audible warnings.
tip
System servicing/repairs
- In the event of an impact, the alignment of the ultrasonic sensors may be altered and its operation may consequently be affected. Deactivate the function and consult an authorised dealer.
- Any work in the area where the ultrasonic sensors are located (repairs, replacements etc.) must be carried out by a qualified professional.
Only an authorised dealer is qualified to service the system.
System disturbance
Some conditions can disrupt or damage the system operation, for example:
- poor weather conditions (rain, snow, hail, black ice, etc.);
- some types of noise (motorcycle, lorry, pneumatic drill, etc.);
- fitting an non-compatible towing ball or hook.
Risk of false alarms or absence of warnings
If the system behaves abnormally contact an authorised dealer.
tip
Limitation of the system operation
- The ultrasonic detection zones should be kept clean and free of any modifications in order to ensure the proper operation of the system.
- Small objects moving close to the vehicle (motorcycles, bicycles, pedestrians, etc.) may not be recognised by the system.
- The system may not detect obstacles that are too close to the vehicle.
- The system may not provide a warning when the other vehicles or obstacles are travelling at a significantly different speed.
- During a change in trajectory during a manoeuvre, the system may report obstacles with a delay.
